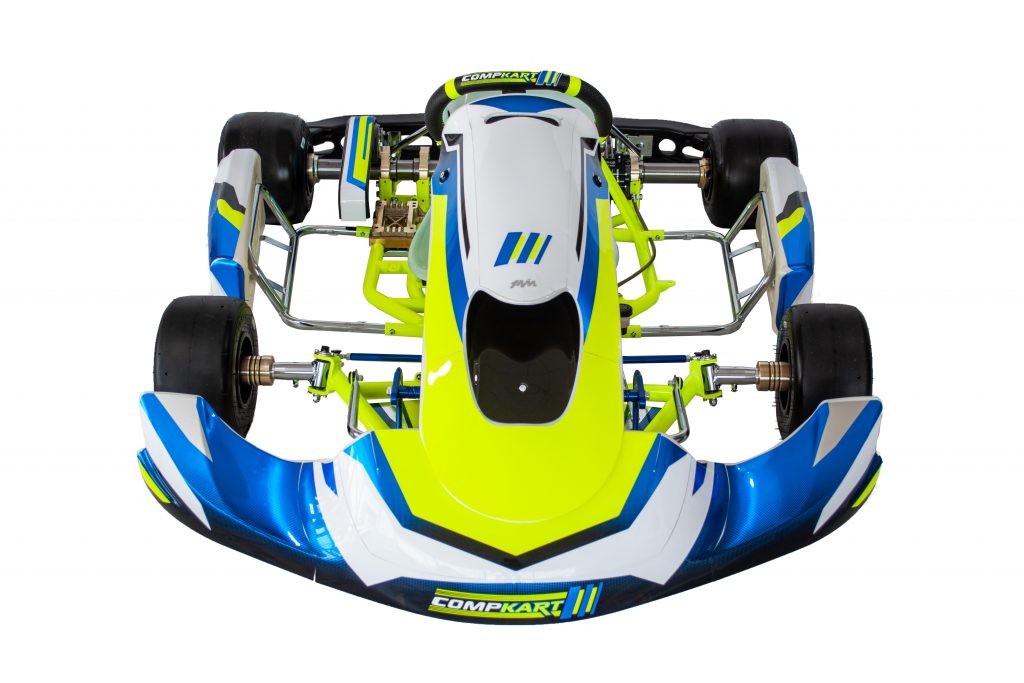

2024 COMPKART COVERT 3.0

The COMPKART Covert 3.0 ‘R22′ racing kart offers the latest designs and components realized from a successful pedigree of developments and results, which has been further refined for the 2022 season’.

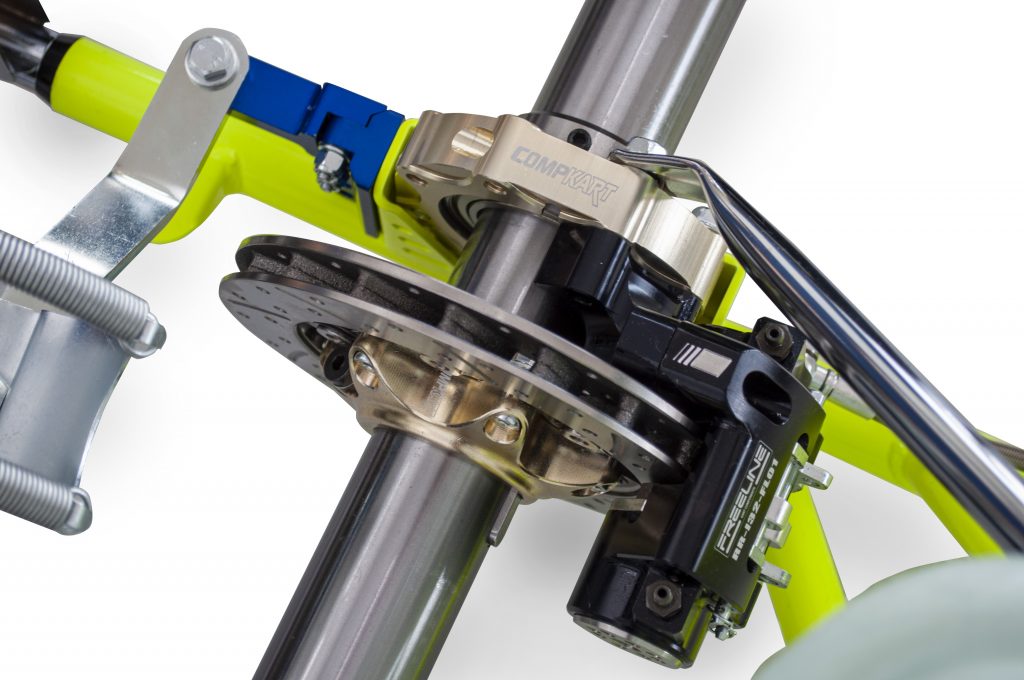

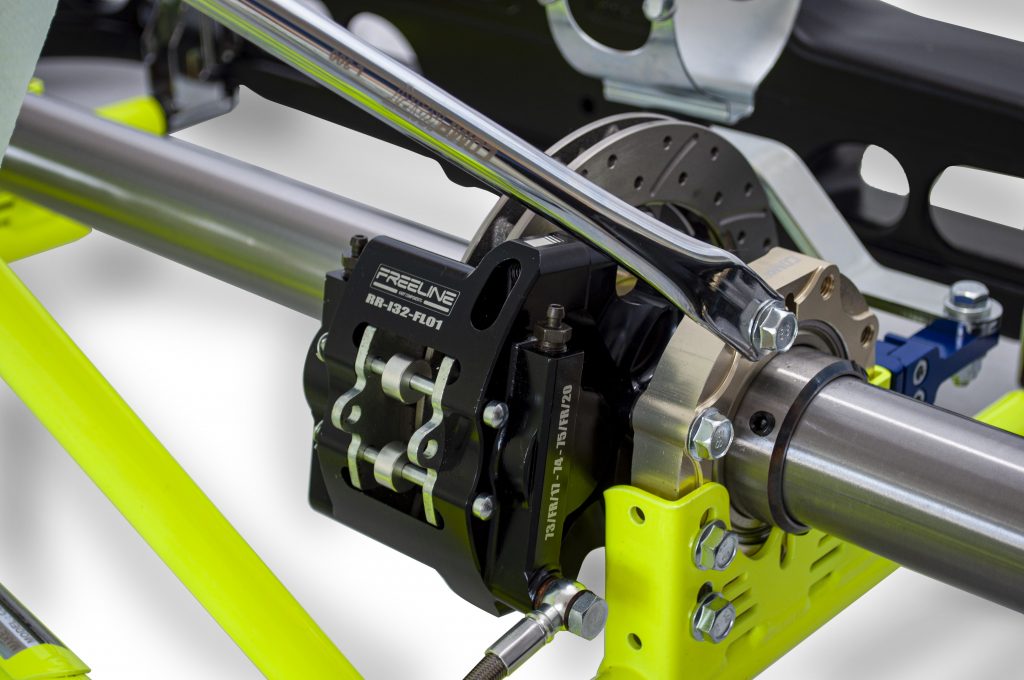

The frame is constructed using specified molybdenum steel allowing for traction and compliance in all changing track conditions which has been improved for 2022. The entirely 30mm steel structure is paired with a powerful self-adjusting ventilated braking system allowing for proper chassis kinematics under braking along with refined geometric changes to enhance corner entry speed along with stability throughout the corner radius. The chassis balance is complete with a re-designed rear carriage mounting alongside a collection of high-grade magnesium hubs standard along with magnesium wheels (DF Type) providing added cornering stability and an increased performance level.

Details

• Standard Magnesium Hubs
• Special Designed Sprocket Carrier (Magnesium)

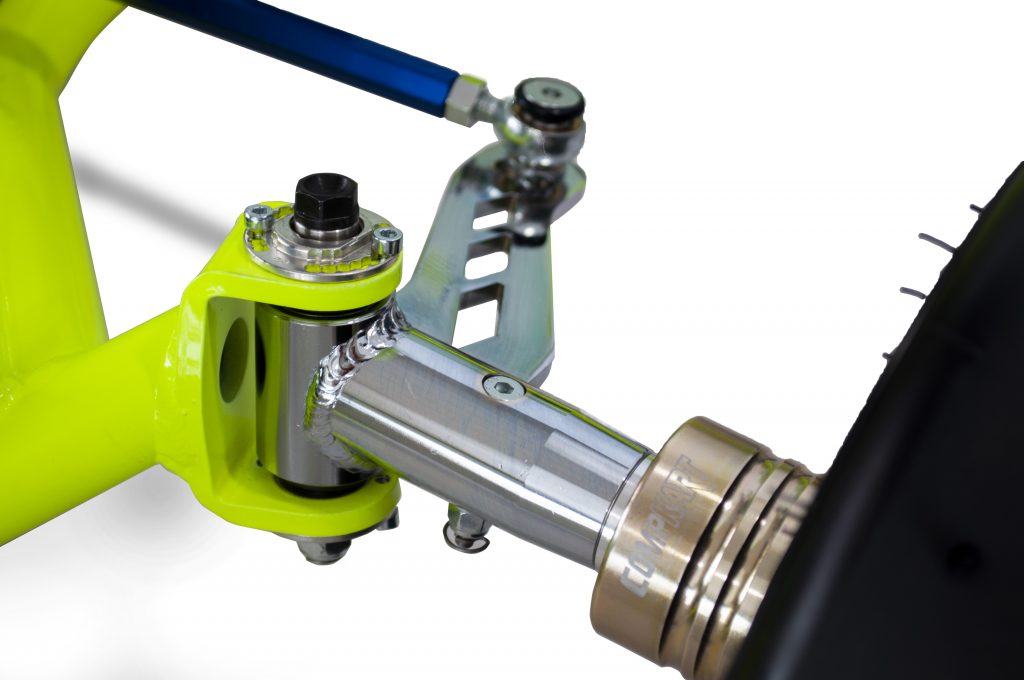

• Stub Axle Finished in Chrome (Adjustable)
• Exhaust Bracket  (Blue Anodized w/ chromed extension)
• Floor Tray Improved aerodynamics and Rigidity

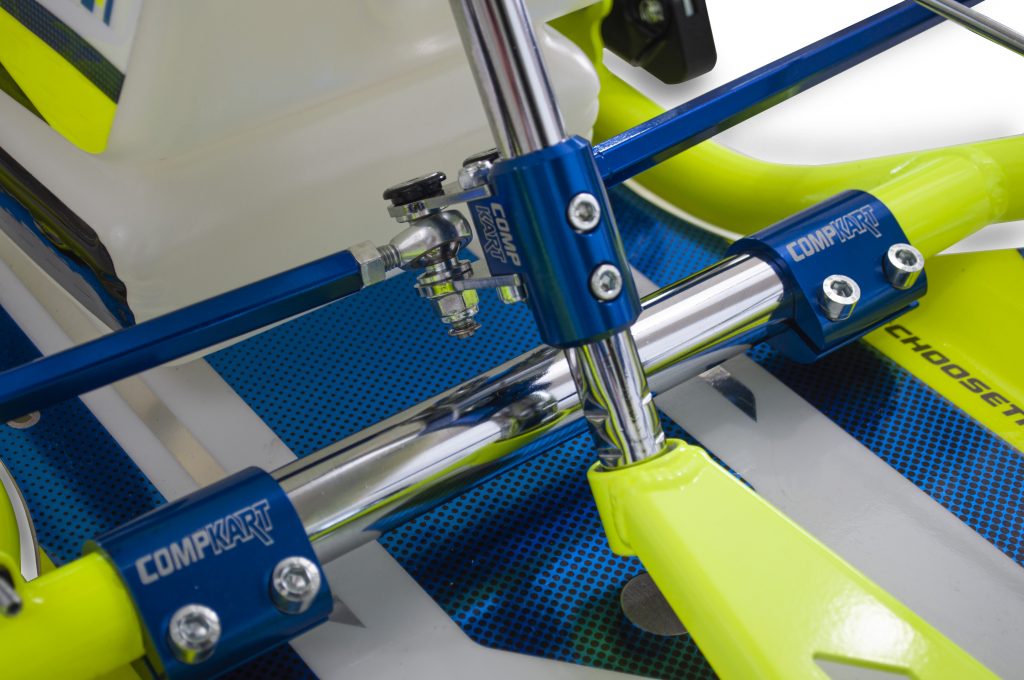

• 4- position Steering Block with PTFE Bearing
• Renewed Lower Front Bumper Mounting

Standard Details

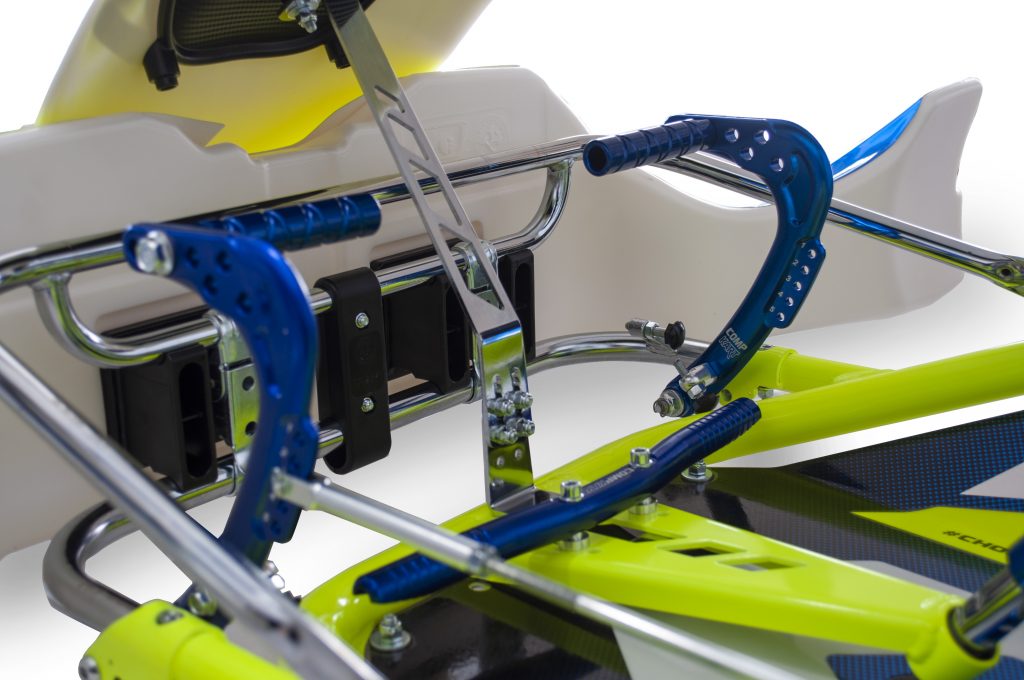

• New Improved and Rigid Pedals
• KG 507/8 Fairing Kit
• New Fuel Tank Mounting Bracket

Chassis Highlights

• 1045mm Wheelbase
• Unique Tubing Mixture (30mm ø) *22
• 2 Position Rear Ride Height With New Bearing Flanges
• Multi Position Uni-ball Eccentric x 10mm
• 25mm Stub Axle (Refined Geometry)
• 50mm x 2mm x 1020mm Axle Type C3.2
